Mandrel

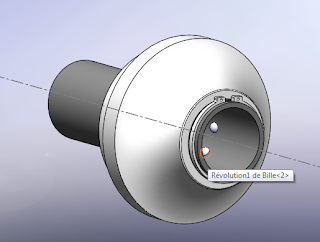

This is based on a real system - Redstone wireless drilling machine. This permits to change quickly and easily the mandrel. The torque is transmitted through the balls.
Cutted view
Organisation with a CAD model
The target was to create a cupboard for shoes and a special ambiance - created with led lights - behind the dividing wall.
We can see the light's holes (6). The wood part on the ceiling hides the electric wires.
The cupboard
We can see the light's holes (6). The wood part on the ceiling hides the electric wires.
The cupboard
vendredi 15 février 2013
A drawing table for A0 format paper
The table had to take minimum space when it was tidied up. And, several level of inclination were needed. Idecided to hang the table on the wall, behind a door.
The 3D system's model and the wall
The rack and pinion system
And a support for some furniture
The 3D system's model and the wall
The rack and pinion system
And a support for some furniture
